Name: Igloo Geodesic Dome
SKU: 160944

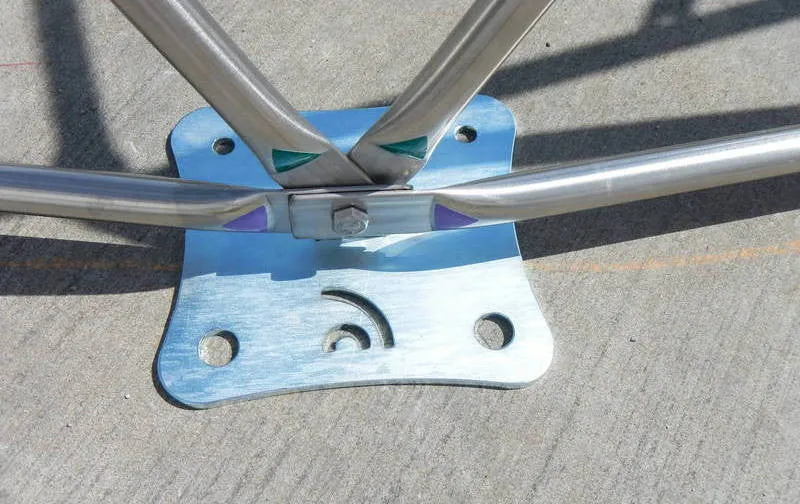

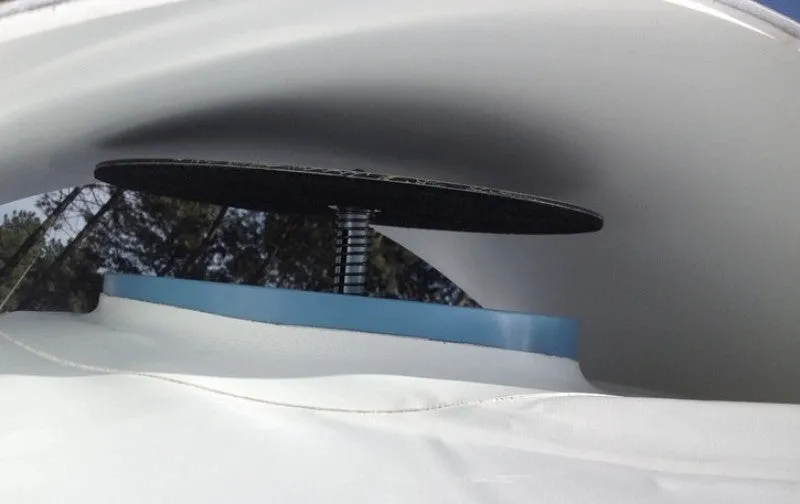

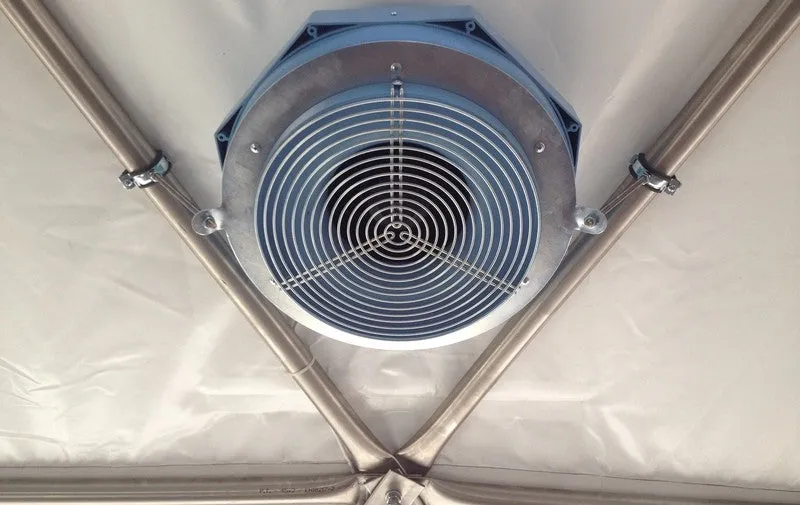

Complete dome consists of dome frame including 2 entrance frames, base plates and screws, cover including 2 zipper close GS = Galvanized steel (zinced) doors, transparent windows up to 5% of cover surface, 5x ventilation openings, special transport pallets and bags, documentation

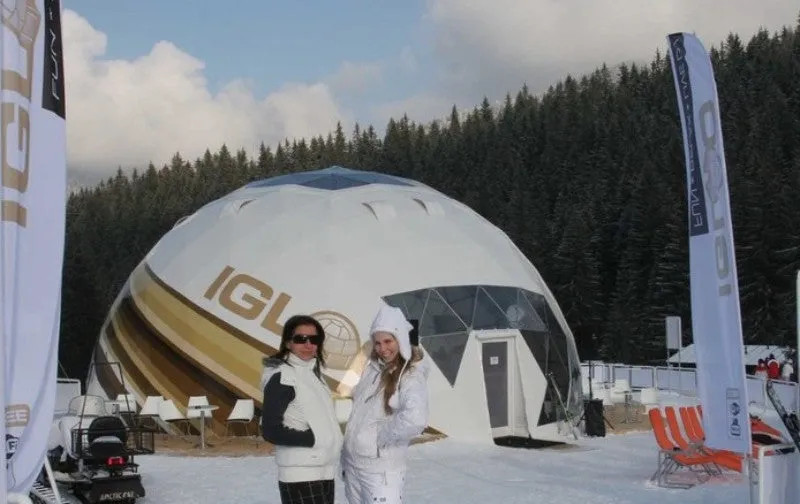

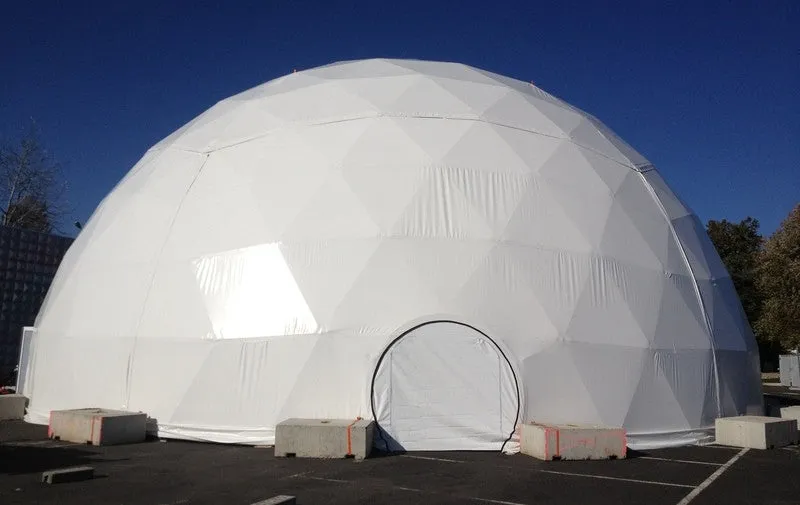

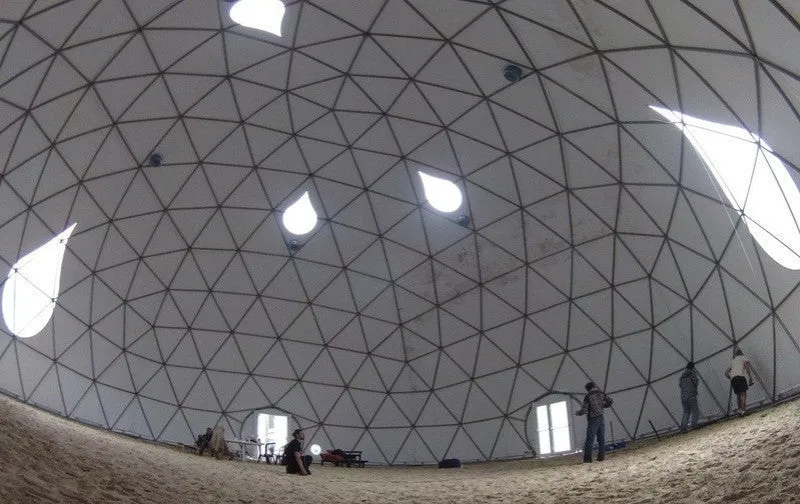

The IGLOO geodesic range of multi purpose, extra-strong, geodesic domes are ideal for temporary or permanent shelter.

The entire super strong frame is made using stainless steel or galvanized steel, covered by strong flame retardant PVC fabric. Temporary and permanent fixing options are available, including integrated floor and ballast solutions

Easy and fast assembly is guaranteed by simple fixation system.
European design and engineered
Available in a broad range of sizes - with custom size options available

from 6m dia all the way to 27m

Modular design with our connection tunnels to allow greater coverage or the creation of dome villages
Structure variants:

Stainless steel (SS) or Galvanized steel (GS)

Skin Variants:

PVC, Opaque PVC, Transparent PVC, Polyester, Bedouinflex Stretch Fabric

A broad range of accessories and options are available. Including but not limited to

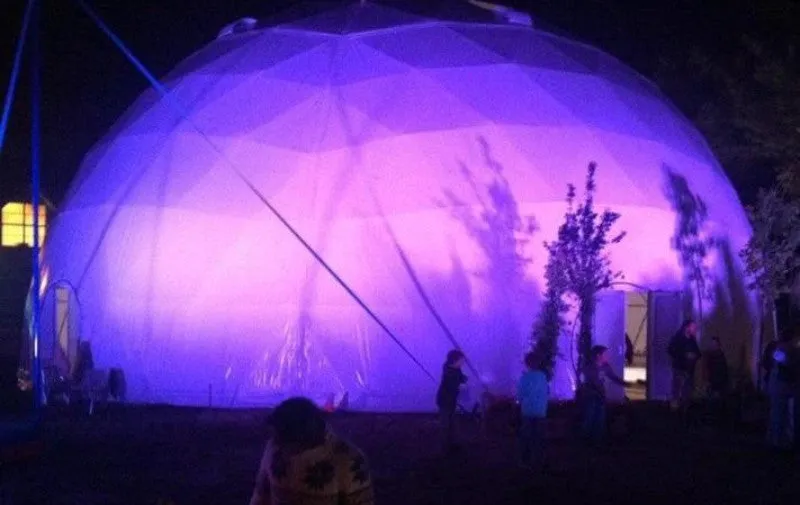

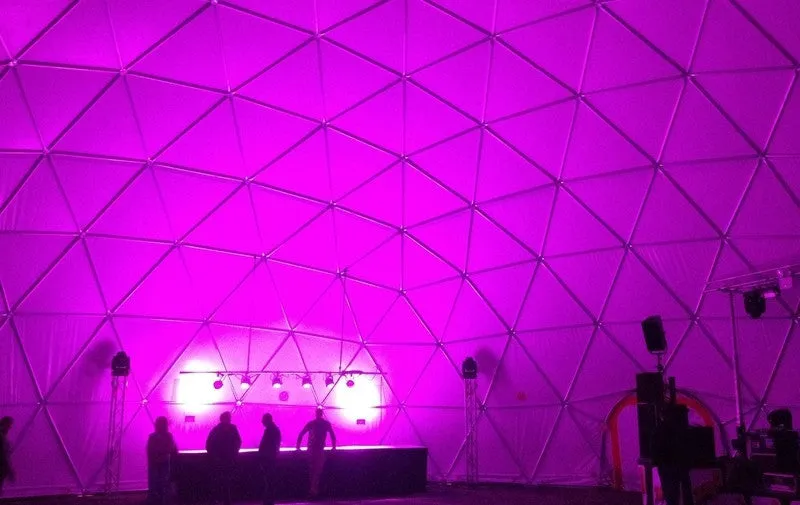

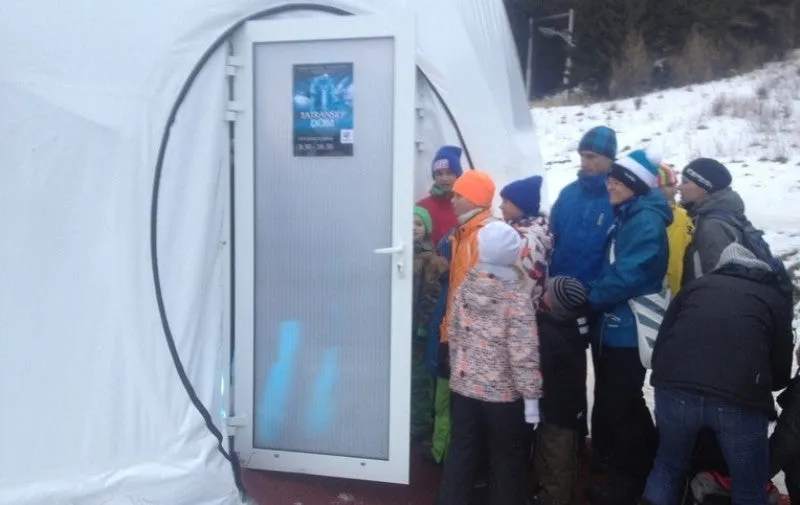

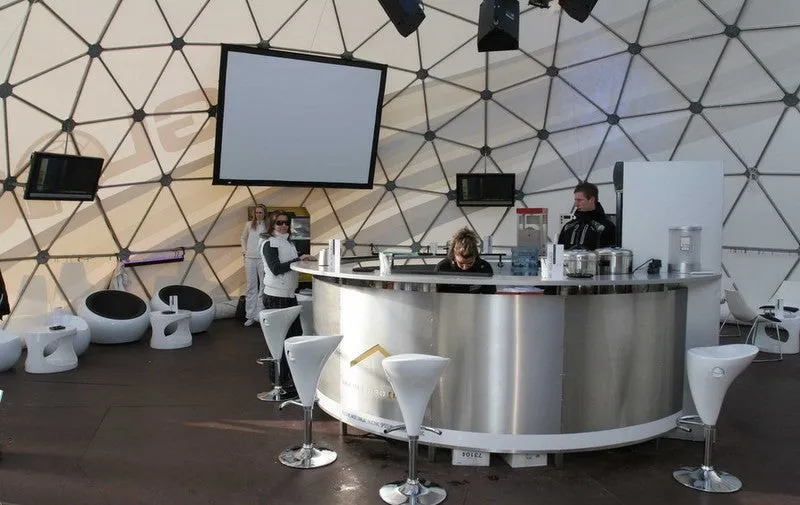

Cooling, heating, internal elements, windows, doors, internal lighting and emergency illumination, full printing and ballast options, Frame reinforcement, Internal podiums, bar desk, DJ desk, Flat TV and screen consoles, hangers etc.

Compact design for easy storage and transport

	TYPE
BASIC DATA	600-4	800-4	1000-5	1250-6	1500-6	1800-6	2000-6	2100-6	2700-6
Frequency	4V	4V	5V	6V	6V	6V	6V	6V	6V
Diameter (mts / ft)	6 / 20	8 / 26	10 / 33	12.5 / 41	15 / 50	18 / 60	20 / 66	21 / 70	27 / 90
Height (mts / ft)	3.5 / 12	4.6 / 15	5.7 / 18	6.2 / 20	7.5 / 25	9 / 30	10 / 33	10.5 / 35	13.5 / 45
Floor Space (sqm)	28	50	75	125	175	255	310	345	570

Approximate capacity (people)
Standing (Disco)	40	70	115	180	260	380	460	520	860
Standing (Cocktail)	20	40	60	100	140	200	250	290	470
Sitting (Cinema)	22	45	80	110	165	45	290	320	530
